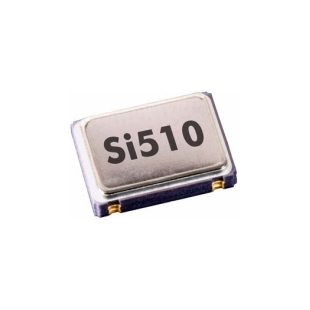

更多>>510ABA212M500AAG,Skyworks思佳訊晶振,千兆以太網晶振
- 頻率：212.5 MHz
- 尺寸：7.00mm x 5.00mm
- 應 用： 510ABA212M500AAG,Skyworks思佳訊晶振,千兆以太網晶振,可實時根據環境溫度變化動態調整晶體諧振參數,實現精準的頻率控制同時采用高速CMOS電平輸出接口,響應速度快至10ns,能完美適配千兆網絡數據傳輸避免因時序響應滯后...
-
510ABA212M500AAG,Skyworks思佳訊晶振,千兆以太網晶振
作為Skyworks美國思佳訊晶振在網絡時鐘元器件領域的代表性產品,510ABA212M500AAG晶振深度聚焦千兆以太網領域?qū)r(shí)鐘信號"高精度,低波動"的核心需求,具備靜態功耗低至50mA(典型值),頻率精度長期保持±30ppm以內的核心優勢.其采用思佳訊獨家的"真空封裝晶體諧振"工藝,通過多層陶瓷外殼與金屬蓋板的緊密密封結構,有效隔絕外界粉塵,濕氣對晶體諧振單元的影響,確保在-40℃~+85℃的工業級寬溫工況,以及振動頻率≤500Hz的復雜環境下,仍能維持穩定的正弦波信號輸出.這一特性可從根源上避免因時鐘信號偏差導致的網絡幀同步失敗,數據校驗錯誤,進而減少網絡延遲或數據丟包問題,為千兆以太網設備(如高清視頻監控交換機,工業控制以太網節點)的7×24小時高效運行筑牢底層時序基礎.
510ABA212M500AAG,Skyworks思佳訊晶振,千兆以太網晶振
| 原廠型號 Originalmodel： | 510ABA212M500AAG | 品牌brand： | Skyworks |
| Manufacturer品牌 | Skyworks | OperatingTemperature溫度 | -40℃ ~ 85℃ |
| Series型號 | Si510 | Current-Supply(Max) | 32mA |
| Type類型 | XO | PackageHeight高度 | 1.80mm |
| Frequency頻率 | 212.5 MHz | Termination 腳位 | 6-pad |
| 輸出方式 Output： | LVPECL | PackageType 封裝類型 | 6-SMD |
| Voltage-Supply電壓 | 3.3V有源晶振 | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | ±25ppm | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 7.00mm x 5.00mm | 最小包裝數MPQ： | 1000 |
510ABA212M500AAG,Skyworks思佳訊晶振,千兆以太網晶振
510ABA212M500AAG,Skyworks思佳訊晶振,千兆以太網晶振
| 510KBA25M0000BAGR | Skyworks | Si510 | XO | 25 MHz | CMOS | 1.8V | ±25ppm |
| 511BBA125M000BAGR | Skyworks | Si511 | XO | 125 MHz | LVDS | 3.3V | ±25ppm |
| 511FBA125M000BAGR | Skyworks | Si511 | XO | 125 MHz | LVDS | 2.5V | ±25ppm |
| 510ABA148M500BAGR | Skyworks | Si510 | XO | 148.5 MHz | LVPECL | 3.3V | ±25ppm |
| 510BBA156M250BAGR | Skyworks | Si510 | XO | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 511FBA000330BAGR | Skyworks | Si511 | XO | 125 MHz | LVDS | 2.5V | ±25ppm |
| 511BBA100M000BAG | Skyworks | Si511 | XO | 100 MHz | LVDS | 3.3V | ±25ppm |
| 511BBA125M000AAG | Skyworks | Si511 | XO | 125 MHz | LVDS | 3.3V | ±25ppm |
| 511BBA100M000AAG | Skyworks | Si511 | XO | 100 MHz | LVDS | 3.3V | ±25ppm |
| 511BBA200M000AAG | Skyworks | Si511 | XO | 200 MHz | LVDS | 3.3V | ±25ppm |
| 530BB125M000DG | Skyworks | Si530 | XO | 125 MHz | LVDS | 3.3V | ±20ppm |
| 531BC125M000DG | Skyworks | Si531 | XO | 125 MHz | LVDS | 3.3V | ±7ppm |
| 545BAA200M000BBG | Skyworks | Si545 | XO | 200 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 570BAB000544DG | Skyworks | Si570 | XO | 156.25 MHz | LVDS | 3.3V | ±50ppm |
| 510BBA125M000AAGR | Skyworks | Si510 | XO | 125 MHz | LVDS | 3.3V | ±25ppm |
| 510BBA156M250AAGR | Skyworks | Si510 | XO | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 511ABA156M250AAGR | Skyworks | Si511 | XO | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 511BBA200M000BAGR | Skyworks | Si511 | XO | 200 MHz | LVDS | 3.3V | ±25ppm |
| 510MCA50M0000AAGR | Skyworks | Si510 | XO | 50 MHz | CMOS | 3.3V | ±20ppm |
| 511BCA160M000BAGR | Skyworks | Si511 | XO | 160 MHz | LVDS | 3.3V | - |
| 510KBA100M000BAG | Skyworks | Si510 | XO | 100 MHz | CMOS | 1.8V | ±25ppm |
| 511BBA74M2500BAG | Skyworks | Si511 | XO | 74.25 MHz | LVDS | 3.3V | ±25ppm |
| 510BBA125M000BAG | Skyworks | Si510 | XO | 125 MHz | LVDS | 3.3V | ±25ppm |
| 511FBA125M000BAG | Skyworks | Si511 | XO | 125 MHz | LVDS | 2.5V | ±25ppm |
| 511BBA125M000BAG | Skyworks | Si511 | XO | 125 MHz | LVDS | 3.3V | ±25ppm |
| 510BBA100M000BAG | Skyworks | Si510 | XO | 100 MHz | LVDS | 3.3V | ±25ppm |
| 511FBA100M000BAG | Skyworks | Si511 | XO | 100 MHz | LVDS | 2.5V | ±25ppm |
| 510FBA125M000BAG | Skyworks | Si510 | XO | 125 MHz | LVDS | 2.5V | ±25ppm |
| 510KCA125M000BAG | Skyworks | Si510 | XO | 125 MHz | CMOS | 1.8V | ±20ppm |
| 511BBA000110BAG | Skyworks | Si511 | XO | 148.35165 MHz | LVDS | 3.3V | ±25ppm |
| 511FBA156M250BAG | Skyworks | Si511 | XO | 156.25 MHz | LVDS | 2.5V | ±25ppm |
| 511BBA148M500BAG | Skyworks | Si511 | XO | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 511JBA125M000BAG | Skyworks | Si511 | XO | 125 MHz | LVDS | 1.8V | ±25ppm |
| 511FBA200M000BAG | Skyworks | Si511 | XO | 200 MHz | LVDS | 2.5V | ±25ppm |
| 510BBA200M000BAG | Skyworks | Si510 | XO | 200 MHz | LVDS | 3.3V | ±25ppm |
| 511JBA100M000BAG | Skyworks | Si511 | XO | 100 MHz | LVDS | 1.8V | ±25ppm |
| 511FCA25M0000BAG | Skyworks | Si511 | XO | 25 MHz | LVDS | 2.5V | ±20ppm |
| 511FCA100M000BAG | Skyworks | Si511 | XO | 100 MHz | LVDS | 2.5V | ±20ppm |
| 511SBA156M250BAG | Skyworks | Si511 | XO | 156.25 MHz | CMOS | 1.8V | ±50ppm |
| 511JBA135M000BAG | Skyworks | Si511 | XO | 135 MHz | LVDS | 1.8V | ±25ppm |
| 511JBA200M000BAG | Skyworks | Si511 | XO | 200 MHz | LVDS | 1.8V | ±25ppm |
| 540BAA000274BBG | Skyworks | Si540 | XO | 322.265625 MHz | LVDS | 1.8V, 2.5V, 3.3V | ±20ppm |
| 530BA125M000DG | Skyworks | Si530 | XO | 125 MHz | LVDS | 3.3V | ±50ppm |
| 531BC106M250DG | Skyworks | Si531 | XO | 106.25 MHz | LVDS | 3.3V | ±7ppm |
| 535AC100M000DG | Skyworks | Si535 | XO | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 510CBA25M0000BAGR | Skyworks | Si510 | XO | 25 MHz | CMOS | 3.3V | ±25ppm |
| 510CBA100M000BAGR | Skyworks | Si510 | XO | 100 MHz | CMOS | 3.3V | ±25ppm |
| 510CBA125M000BAGR | Skyworks | Si510 | XO | 125 MHz | CMOS | 3.3V | ±25ppm |
| 510CBA100M000AAGR | Skyworks | Si510 | XO | 100 MHz | CMOS | 3.3V | ±25ppm |
| 510GBA25M0000BAG | Skyworks | Si510 | XO | 25 MHz | CMOS | 2.5V | ±25ppm |
| 510KBA125M000BAGR | Skyworks | Si510 | XO | 125 MHz | CMOS | 1.8V | ±25ppm |
| 511BBA106M250AAGR | Skyworks | Si511 | XO | 106.25 MHz | LVDS | 3.3V | ±25ppm |
| 510KBA28M6363BAG | Skyworks | Si510 | XO | 28.6363 MHz | CMOS | 1.8V | ±25ppm |
| 511BBA106M250BAG | Skyworks | Si511 | XO | 106.25 MHz | LVDS | 3.3V | ±25ppm |
| 510KCA25M0000BAG | Skyworks | Si510 | XO | 25 MHz | CMOS | 1.8V | ±20ppm |
| 510KCB25M0000BAG | Skyworks | Si510 | XO | 25 MHz | CMOS | 1.8V | ±20ppm |
| 510CCA25M0000BAG | Skyworks | Si510 | XO | 25 MHz | CMOS | 3.3V | ±20ppm |
| 510CCA100M000BAG | Skyworks | Si510 | XO | 100 MHz | CMOS | 3.3V | ±20ppm |
| 511ABA156M250BAG | Skyworks | Si511 | XO | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| 510CBA50M0000AAG | Skyworks | Si510 | XO | 50 MHz | CMOS | 3.3V | ±25ppm |
